ScanINSPECT VPI is the advanced PCB inspection and verification platform that helps engineers and manufacturers visualize, analyze, and validate designs with precision — reducing errors, improving collaboration, and accelerating production.
A fully integrated, stand-alone process control, measurement and inspection and programming workstation for use in setting up processes before the production floor in the PCB or Hybrid Microcircuit assembly industries.
Uses a PC Windows-based software package integrated with a high resolution, calibrated, A3 size flatbed scanner. This combination allows inspection of artwork, PCB’s, ceramic substrates, components, stencils and screens at virtually any stage of production. Parts can be inspected versus either Gerber data, CAD data or Golden parts. All variables come together as a virtual part to avoid costly problems before full production starts.
Capable of performing many different functions in a PCB Assembly facility such as: Design, Components, Bare Boards, Stencils and Screens, Wet Boards, First Article Inspection, Loaded Boards
Used to check: Design, Artwork, Wet Substrates, Loaded Substrates, Stencils/Screens
• Create through hole or SMT assembly programs from either Gerber data, ASCII centroid data or scanned images of PCB’s, film and stencils.
• Create component vision files for SMT placement equipment from scanned images of components. Offline and no more calipers.
Can be quickly learned and is simple to operate. Most inspection operations only take a few steps and can be completed very quickly. Operators can step between defects and zoom in and out to verify errors. Inspection reports can be easily generated.
• Contact System
• Scanner Faces Up
• Part Faces Down
• Dry or Wet Parts with Standoffs
• Large Part Capability with Multiple Scans
• B&W or Color Imaging
• Top and/or Bottom Lighting
• NIST Glass Plate Calibration
• Automatic Raster to Gerber Alignment
• Verify feature sizes to 0.0005” and feature absence/presence as small as 0.002” (0.050 mm)

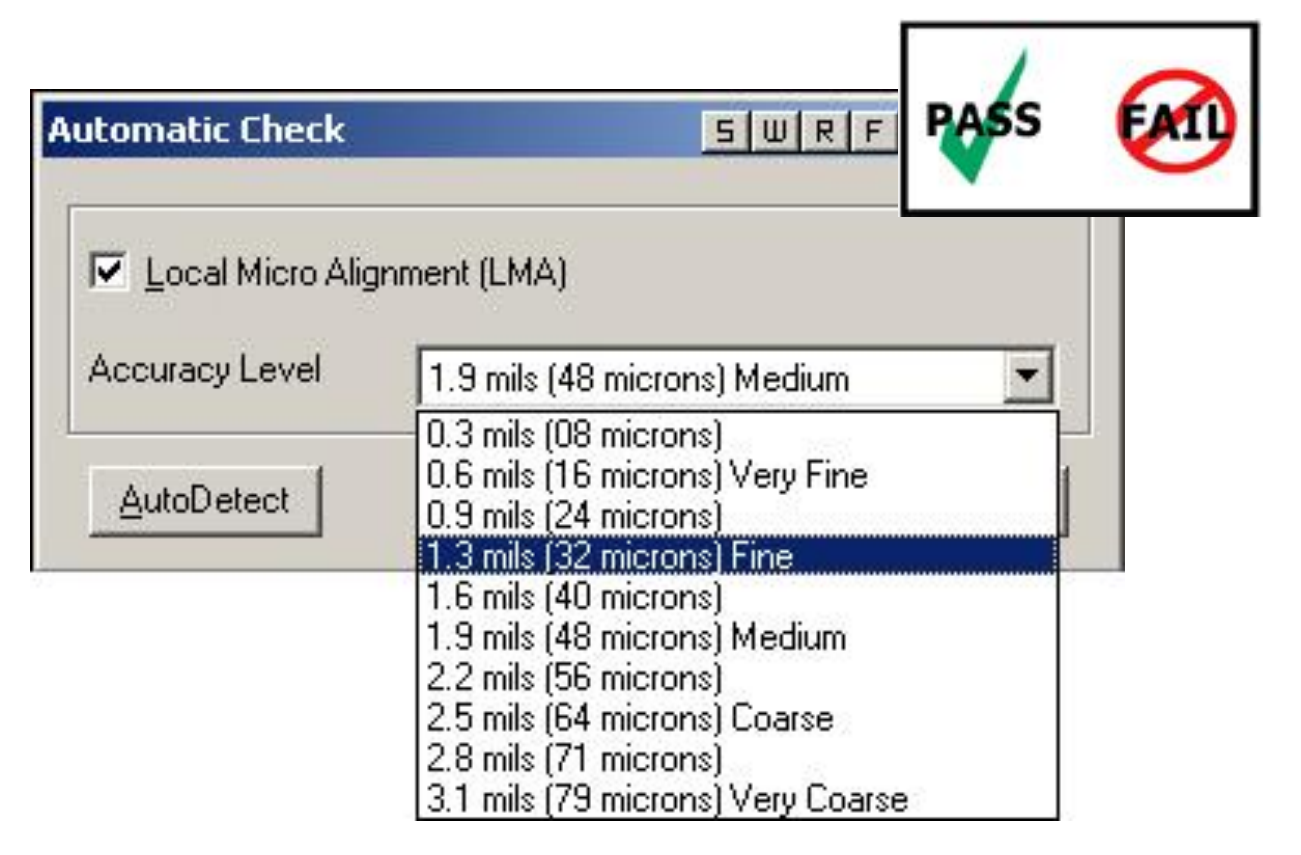

• User Defined or Automatic Inspection Accuracy Level Setting
• Check Feature Size, Shape and Position
• Check and Compare Gerber Image against Scanned Image
• Check Scanned Image against Scanned Image

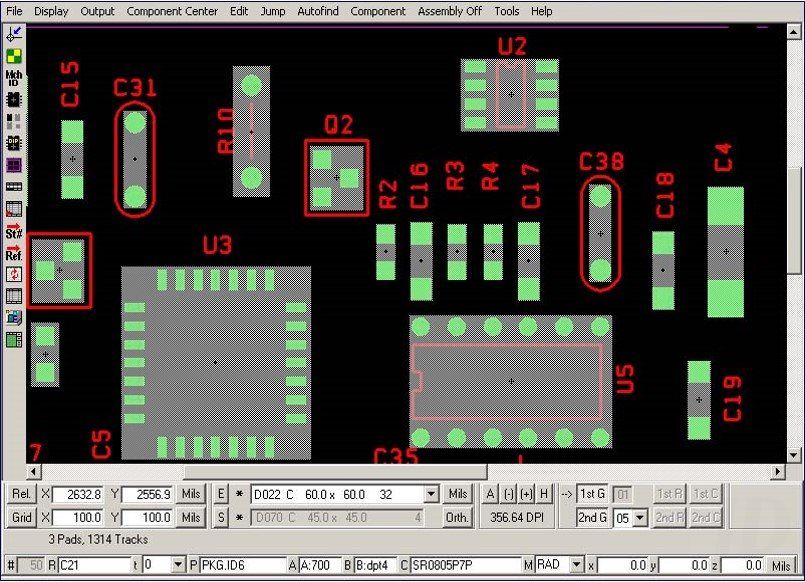

• Overlay ASCII Centroid Data over Scanned Image
• Point to Point Measurement Functions
• Perform Area Inspection Function of Scanned Features Such as Apertures, PADS, Wet Material, etc
• ASCII CAD, Gerber and BOM Inputs
• Scanned Images of PBS’s, Film, Drawings, Stencils, Components, etc
• Create Assembly Programs From Gerber or Scanned Images When No CAD or Gerber Available
• Create Component Vision Files from Scanned Images of Components
• Pass/Fail Inspection Report
• Rework File Generation
• Over 70 Different Machine Output Formats
• Many CAM Package Outputs Supported • Direct Component Vision File Generation for Fuji SMD3 and Siemens SIPLACE Pro
• Generic Component Vision File for Other Placement Machine Suppliers
• Gerber Files (274D & 274X)
• Comprehensive Aperture Tables
• Stencil Files
• BMP, TIFF
• DXF
